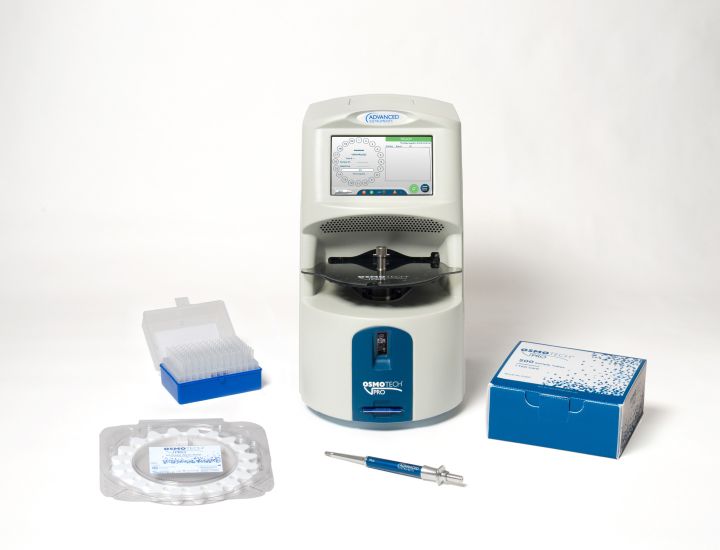

OsmoTECH® PRO Multi-Sample Micro-Osmometer



Sample type Aqueous-based solution
Sample volume 30 ± 1 μL
Test time 90 seconds (typical) to test single sample 40 minutes (typical) to test 20 samples
Sample Capacity Multi sample
Resolution 1 mOsm/kg H2O
Range 0-2000 mOsm/kg H2O
Accuracy2 0-400 mOsm/kg H2O: mean value ± 3 mOsm/kg H2O from nominal value
400-2000 mOsm/kg H2O: mean value ± 0.75% from normal value
Within-run Repeatability2 0-400 mOsm/kg H2O: standard deviation ≤ 3 mOsm/kg H2O from nominal value
400-2000 mOsm/kg H2O: Coefficient of Variation ≤ 0.75%
Temperature effects3 Less than 1 mOsm/kg H2O per 5 °C (9 °F) ambient temperature change
Calibration 0*, 50, 850, and 2000* mOsm/kg H2O (* optional)
Supported Languages Simple Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Turkish
Storage temperature -20 °C to +45 °C (-4 °F to +113 °F)
Electrical voltage 100 to 240 VAC (50/60 Hz)
Power consumption 60 Watts
Dimensions (D x W x H) 39 cm x 25 cm x 46 cm (15.3” x 10” x 18”)
Net weight 13.2 kg (29 lbs.)
