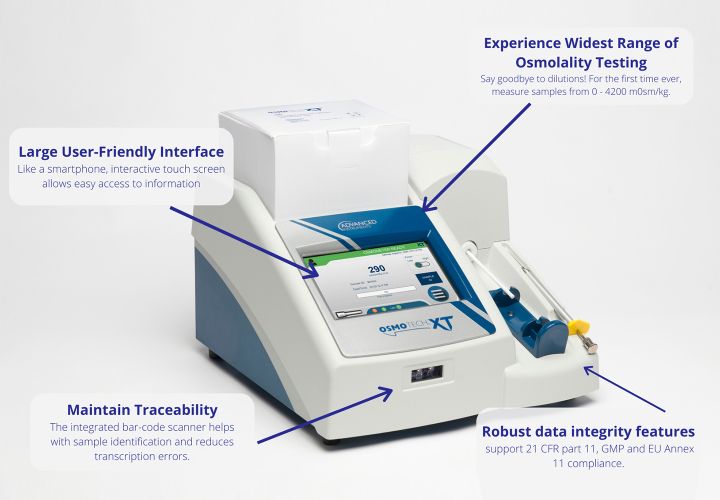

OsmoTECH® XT Single-Sample Micro-Osmometer



Sample type Aqueous-based solution
Sample volume 20 ± 1 μL
Test time ≤150 seconds in low range; ≤190 seconds in high range
Sample Capacity Single sample
Resolution 1 mOsm/kg H2O
Range 0-4000 mOsm/kg H2O
Accuracy ±2 mOsm/kg H2O from nominal value between 0 and 400 mOsm/kg H2O (1 SD)



±0.5% from nominal value between 400 and less than 1500 mOsm/kg H2O (1 SD)

±1% from nominal value from 1500 to 4000 mOsm/kg H2O (1 SD)

Within-run Repeatability (AI Standards and Reference Solutions) Standard deviation ≤ 2 mOsm/kg H2O between 0 and 400 mOsm/kg H2O



Coefficient of variation ≤ 0.5% between 400 and less than 1500 mOsm/kg H2O

Coefficient of variation ≤ 1% from 1500 to 4000 mOsm/kg H2O

Supported Languages English, Simplified Chinese, French, German, Italian, Japanese, Korean, Russian, Spanish, Turkish
Storage temperature -20 °C to +45 °C (-4 °F to +113 °F)
Electrical voltage 100 to 240 VAC (50/60 Hz)
Power consumption 60 Watts
Dimensions (D x W x H) Not including test kit: 15″ x 14″ x 10″ (38 cm x 36 cm x 25 cm)



Including test kit: 15″ x 14″ x 11.5″ (38 cm x 36 cm x 38 cm)

Net weight 5.9 kg (12.9 lbs.)
