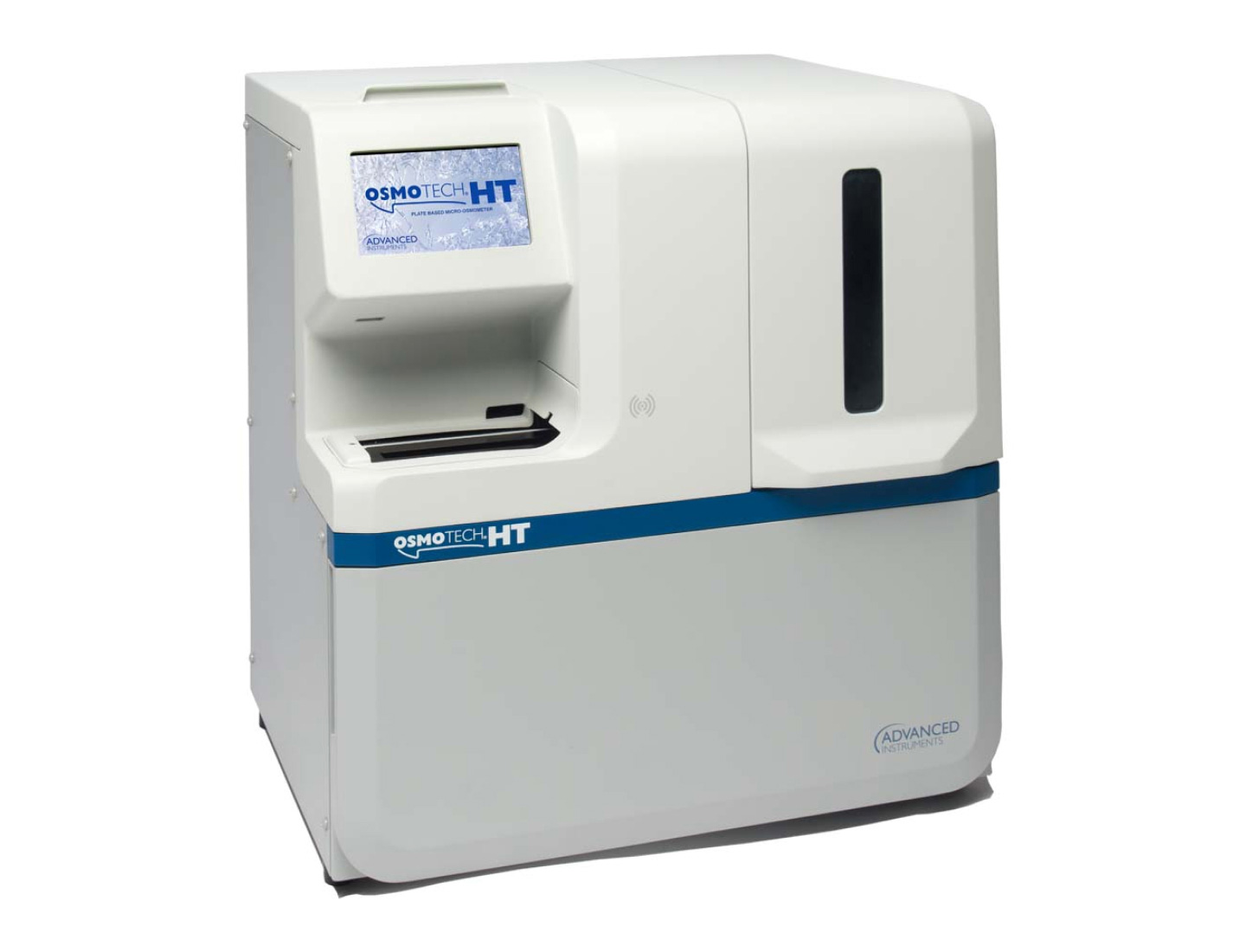

OsmoTECH® HT Automated Micro-Osmometer

Sample type	Aqueous-based solution
Sample volume per test	40 μL
Test time	140 seconds
Sample Capacity	Multi plate
Resolution	1 mOsm/kg H2O
Range1	0-2000 mOsm/kg H2O
Accuracy2 (AI standards and reference solutions)	Mean value ±3 mOsm/kg H2O from nominal value between 0 and 400 mOsm/kg H2O (1 SD) Mean value ±1% from nominal value greater than 400 to 2000 mOsm/ kg H2O (1 SD)
Within-run Repeatability2 (AI Standards and Reference Solutions)	Standard deviation ≤3 mOsm/kg H2O between 0 and 400 mOsm/kg H2O Coefficient of variation ≤1% greater than 400 to 2000 mOsm/kg H2O
Operating conditions	Temperature: 18 °C to 35 °C (64 °F to 95 °F) Humidity: 5 to 80% relative humidity (non-condensing)
Supported Languages	English, Simplified Chinese, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Turkish
Storage temperature	-20 °C to +45 °C (-4 °F to +113 °F)
Electrical voltage	100 to 240 VAC (50/60 Hz)
Power consumption	60 Watts
Dimensions (D x W x H)	48.9 cm D x 62.87 cm W x 68.58 cm H (19.25” D X 24.75” W X 27 H”)
Net weight	59.7 kg (131.6 lbs.)
