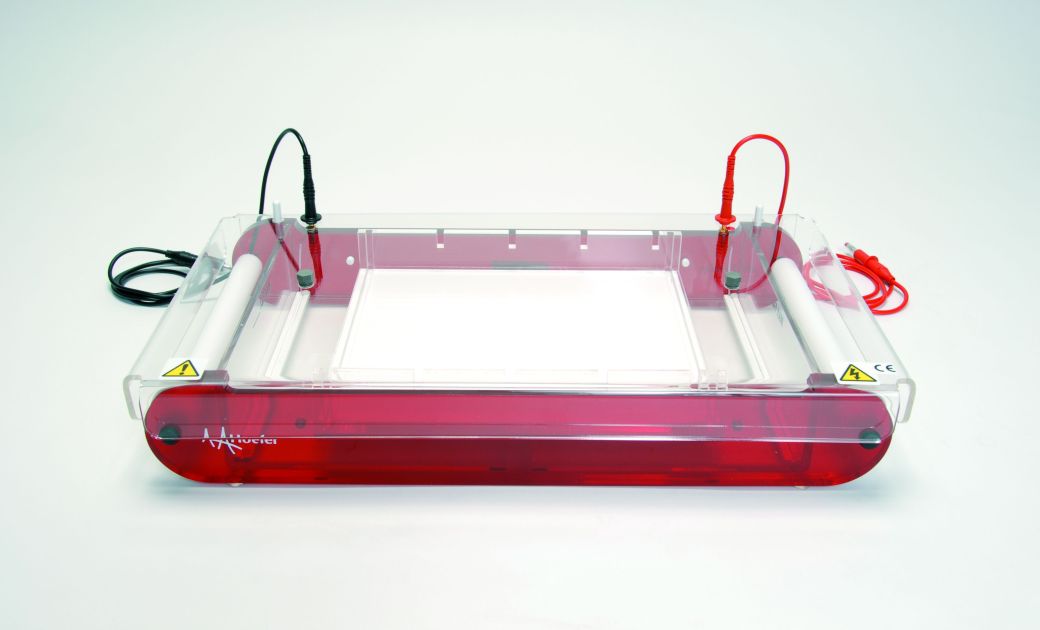

The SUB20 Maxi-Standard Submarine Electrophoresis Unit provides a 20 x 20 cm gel-running tray with four comb positions which allows the user to perform high-resolution analytical and preparative studies of nucleic acids. Handles up to 168 samples.

Features & Benefits:

• Large format‐20 x 20 cm gel tray is ideal for high resolution techniques
• Multichannel pipette compatible combs—with a maximum 40 sample throughput reduce gel loading time
• Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
• Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
• Colored loading strips—for easy well detection when loading
• UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
• Side handles—for safe and easy transportation around the laboratory

Includes:

• Buffer Chamber Assembly
• Safety Lid
• High Voltage Leads
• Running Tray with Casting Gates
• 1 mm thick, 16 well combs, 2 pcs
• Colored Loading Strips
• Buffer Recirculation Ports, 2 pcs

* The included casting gates conveniently and efficiently seal the running tray without the hassles of using tape.
