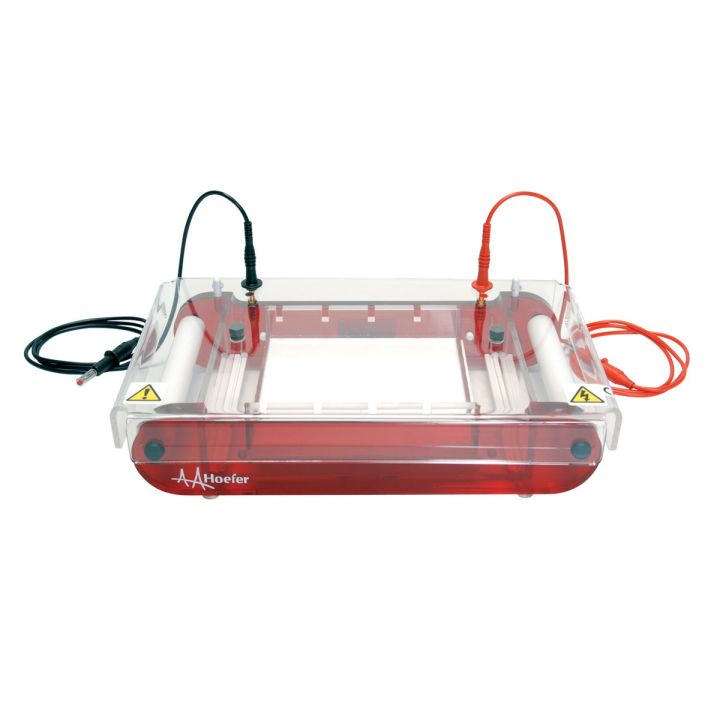

Midi Horizontal Electrophoresis System SUB13

 The SUB13 Midi Submarine Gel Unit is ideal for analytical and preparative studies of nucleic acids. It has a maximum 112-sample throughput capacity and features a removable gel-casting tray with end gaskets that allow gels to be cas tdirectly within the tank.

Features and Benefits

• Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
• Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
• Colored loading strips—for easy well detection when loading
• Compact tank—reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time
• UV-transparent running tray— allows the user to image the gel without risk of damage due to handling
• Side handles—for safe and easy transportation around the laboratory

Includes:

• Buffer Chamber Assembly
• Safety Lid
• High Voltage Leads
• Running Tray with Silicone Gasket*
• 1 mm thick, 16-well combs, 2 pcs
• Colored Loading Strips
• Buffer Recirculation Ports, 2 pcs

* The included running tray is lined with silicone gaskets which form a leak-proof seal against the inner walls of the running chamber when the running tray is turned 90° to the direction of electrophoresis.
